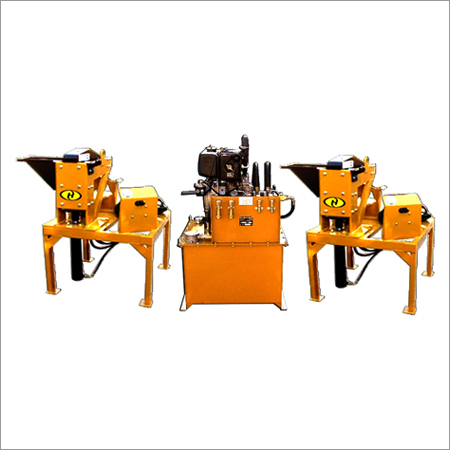

Interlocking Block Making Machine

Interlocking Block Making Machine

Available with us is an exceptional quality array of Interlocking Block Making Machine. All our block making machines are assured to be in accordance with the international standards and norms. Our offered Interlocking Block Making Machine is best suited for construction sites. Widely appreciated for compact design, low power consumption and optimal performance, all our manufactured machines are very easy to handle and operate.

Specification:

• Capacity: Upto 400 blocks per hour
• Weight: 1550 kg
• Power source: Electric motor 11 kW/ 15 Hp, 440v 3 phase
• Chassis: Sturdy steel Static frame
• Mobility: Stationary
• Hydraulic Power pack & cylinders: 1 with 2 sets of chambers

Key Features:

• Robust body
• Long functional life
• PLC system
• Fully automatic functioning

Technical Parameters:

• Vibration Frequency : 3800-4500(Beats / min)
• Excitation Force: 68KN
• Molding Cycle: 15-20(s)
• Pallet dimension: 880*680*20(mm)
• Overall Dimension : 9450*3300*2700(mm)
• Hollow Brick: 390*190*190 6bricks / 8 hours
• Perforated Brick: 240*115*51 15bricks / 8 hours
• Environmentally friendly bricks 18 bricks / 8 hours
• Standard Brick: 240*115*51 bricks/8hours
